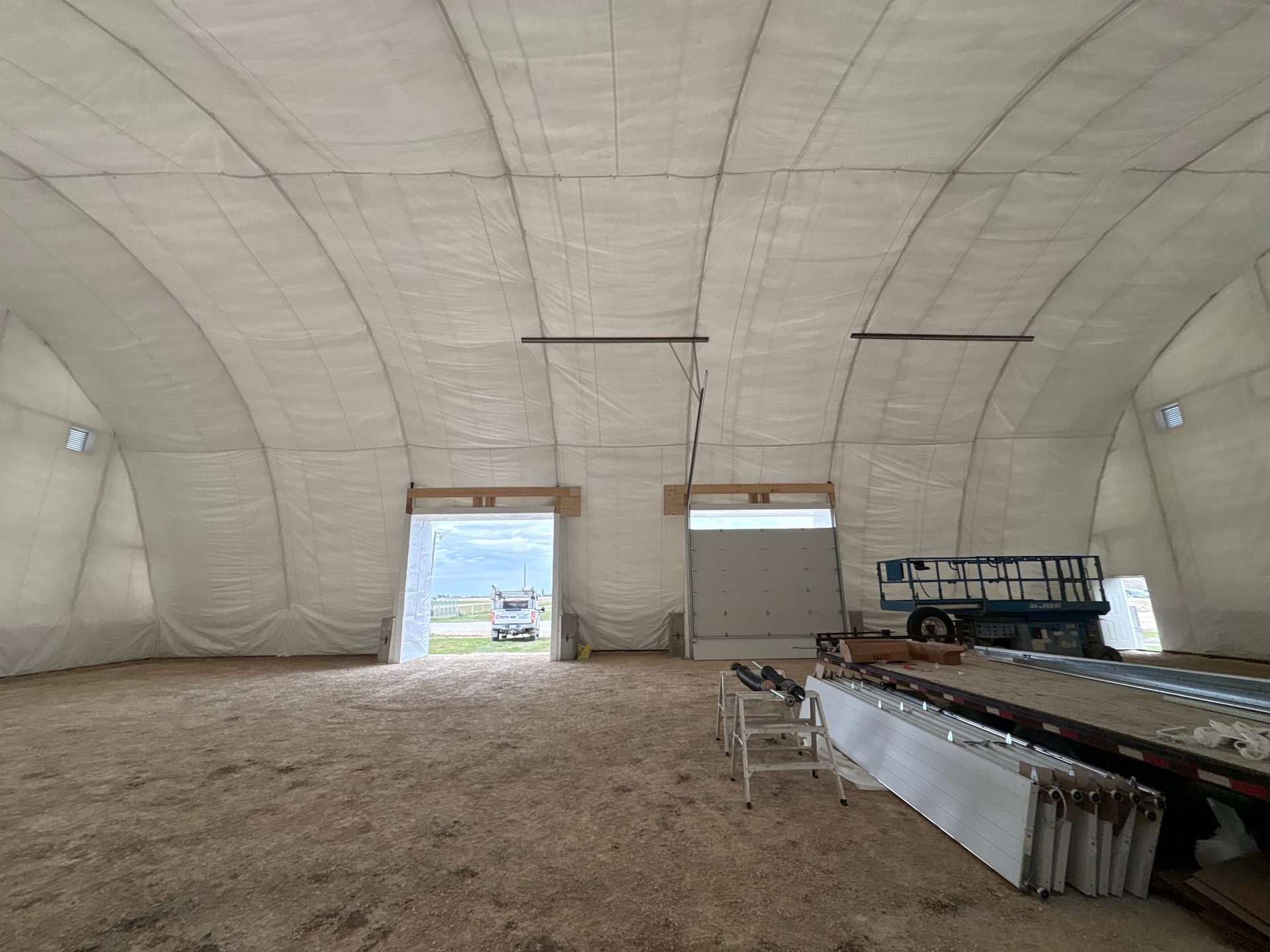

insulated fabric building with side doors

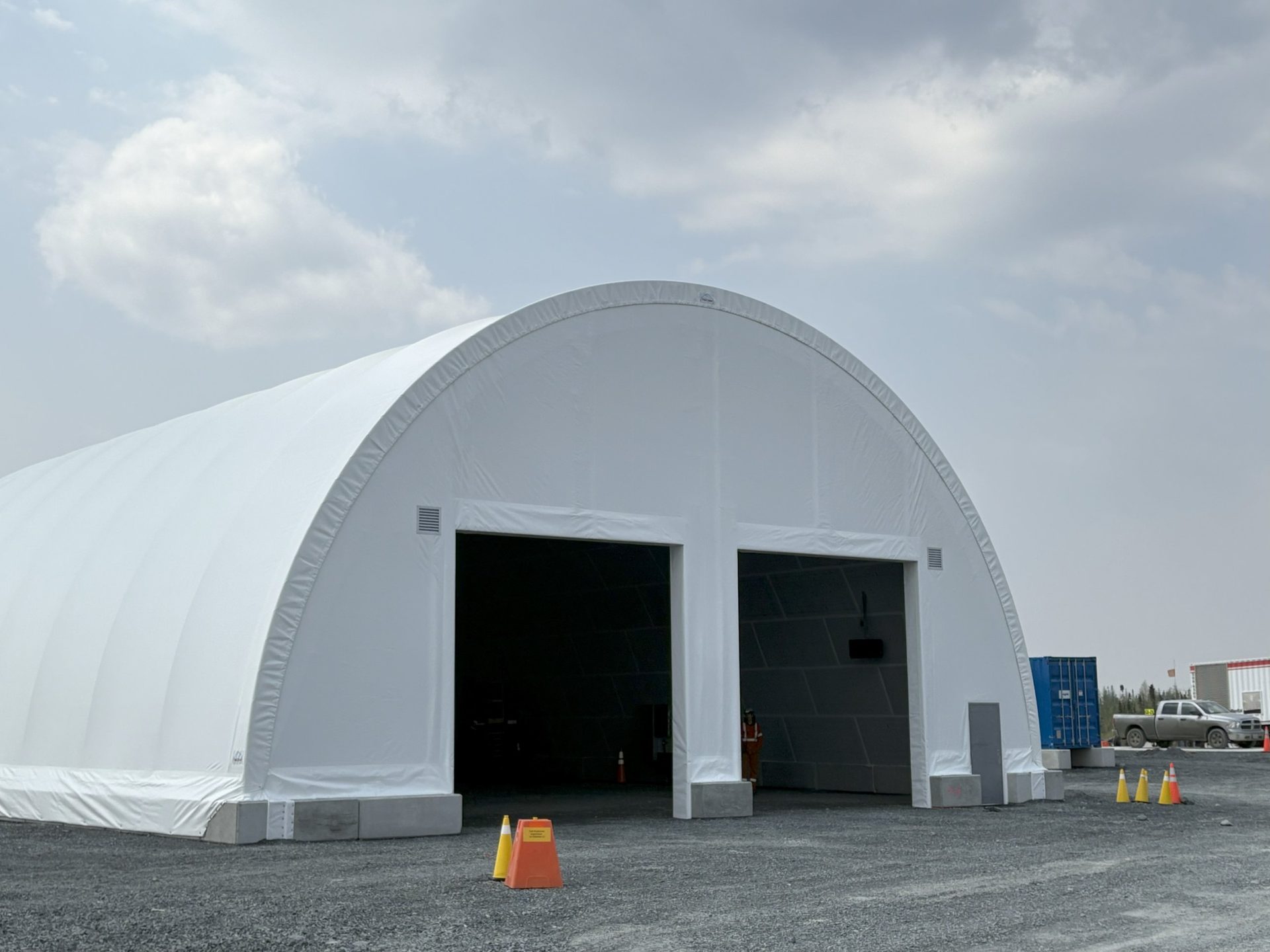

60' double door canvas building

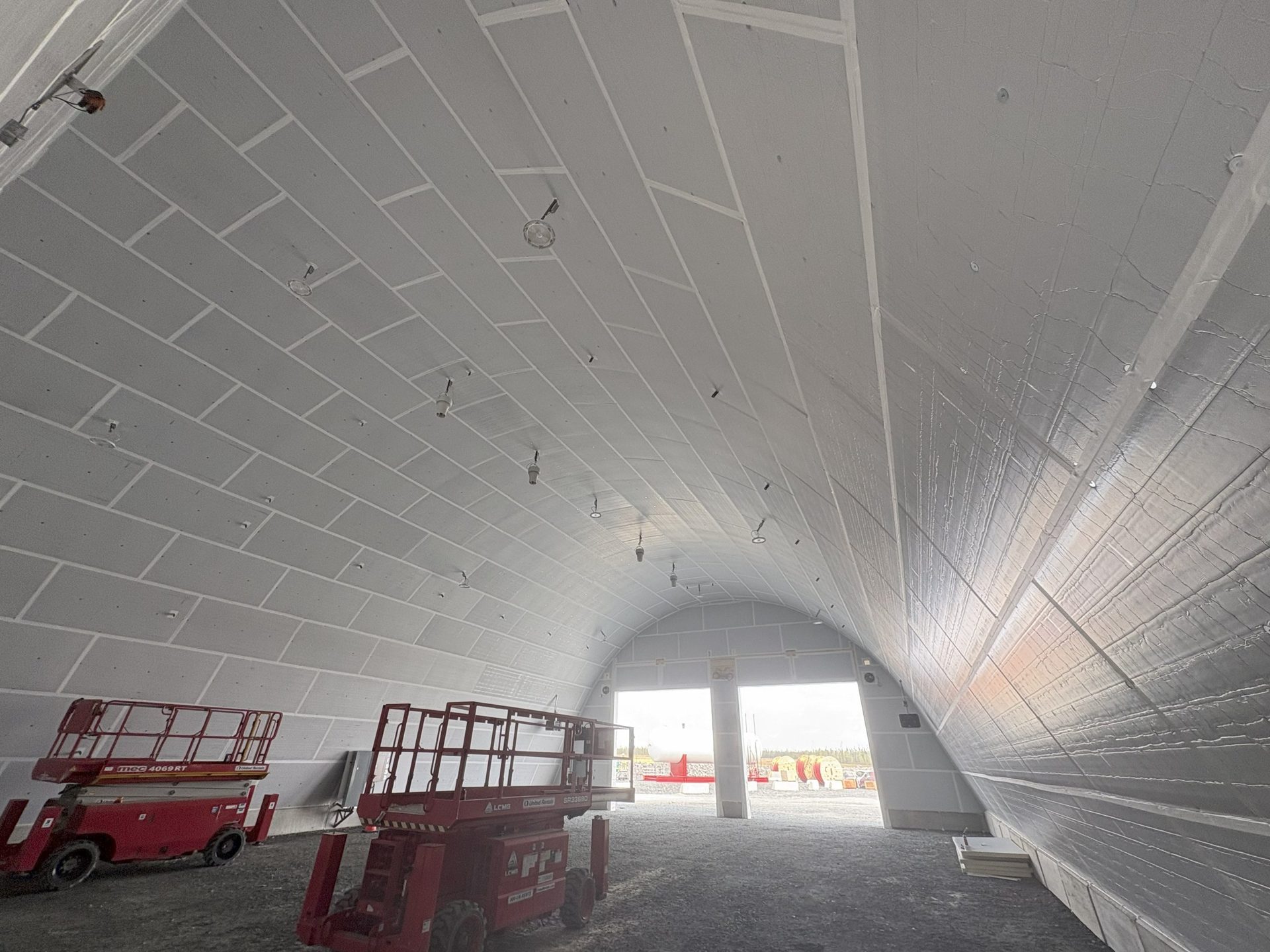

insulated commercial canvas building

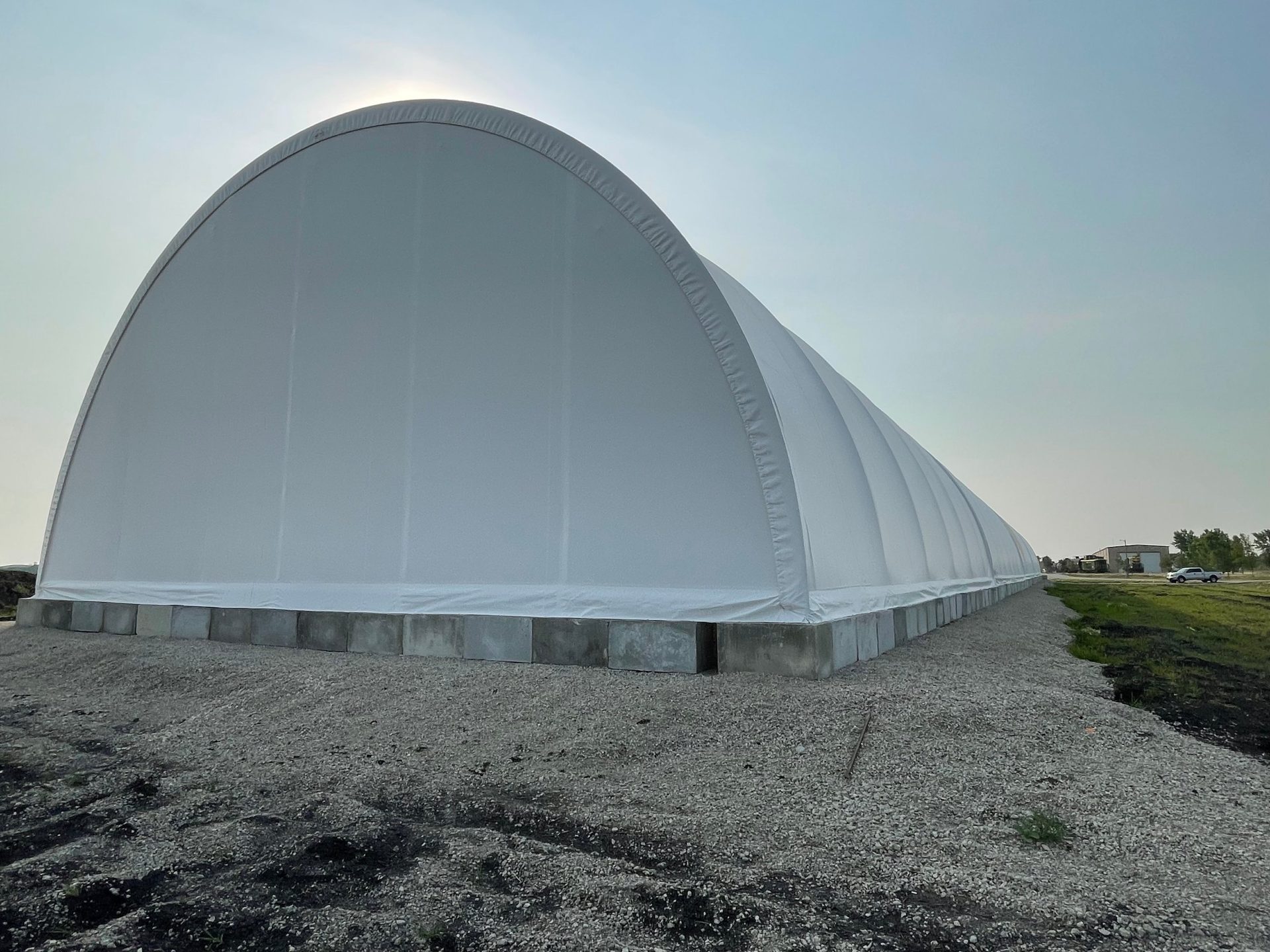

commercial fabric building on foundation

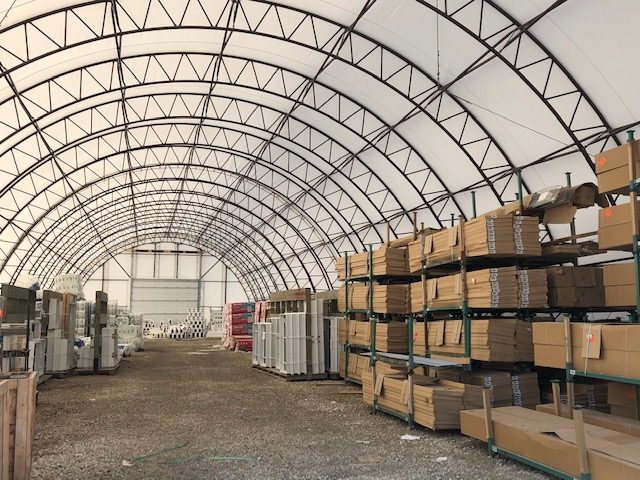

large canvas building for commercial warehousing

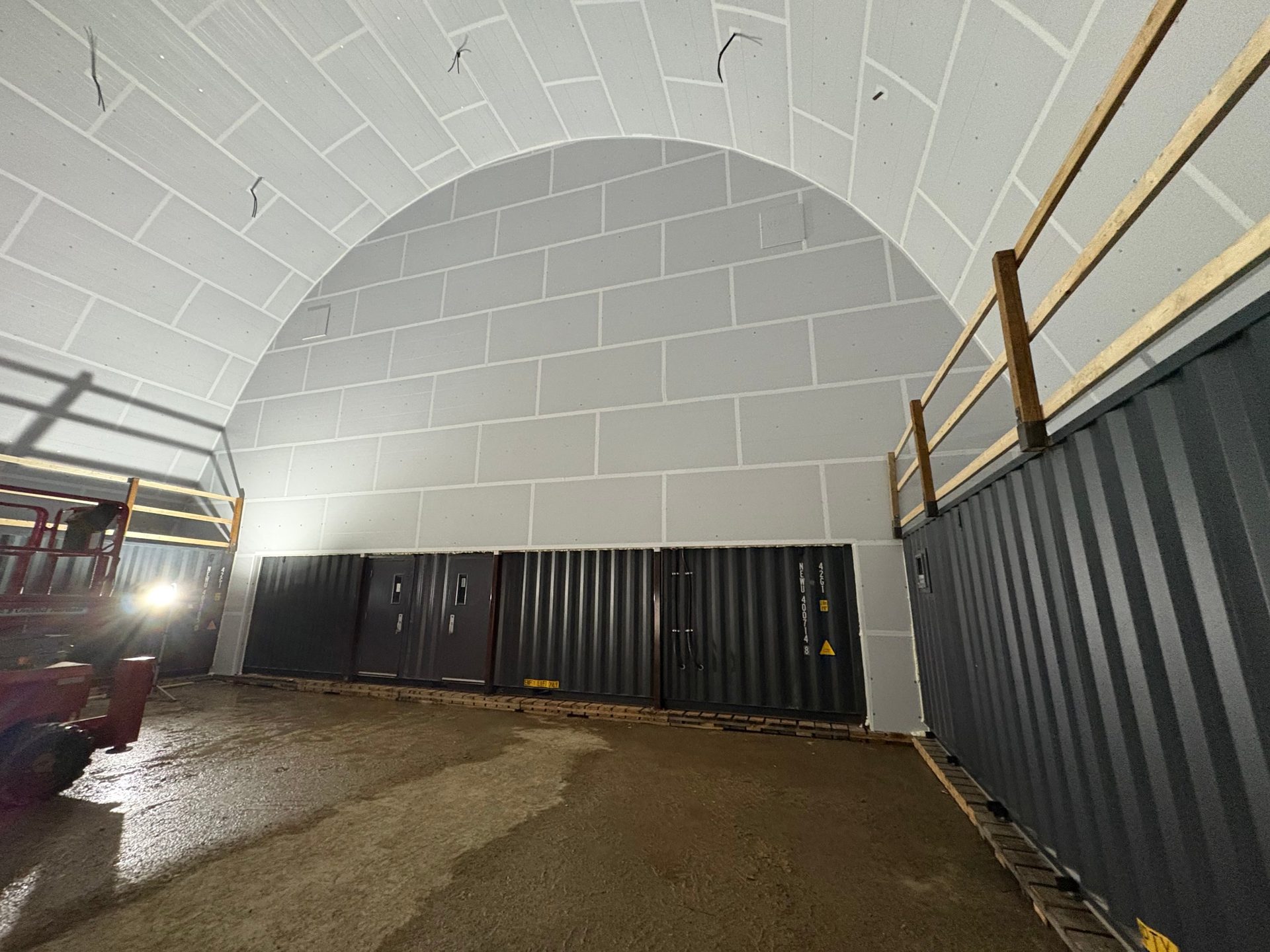

insulated canvas building on seacans

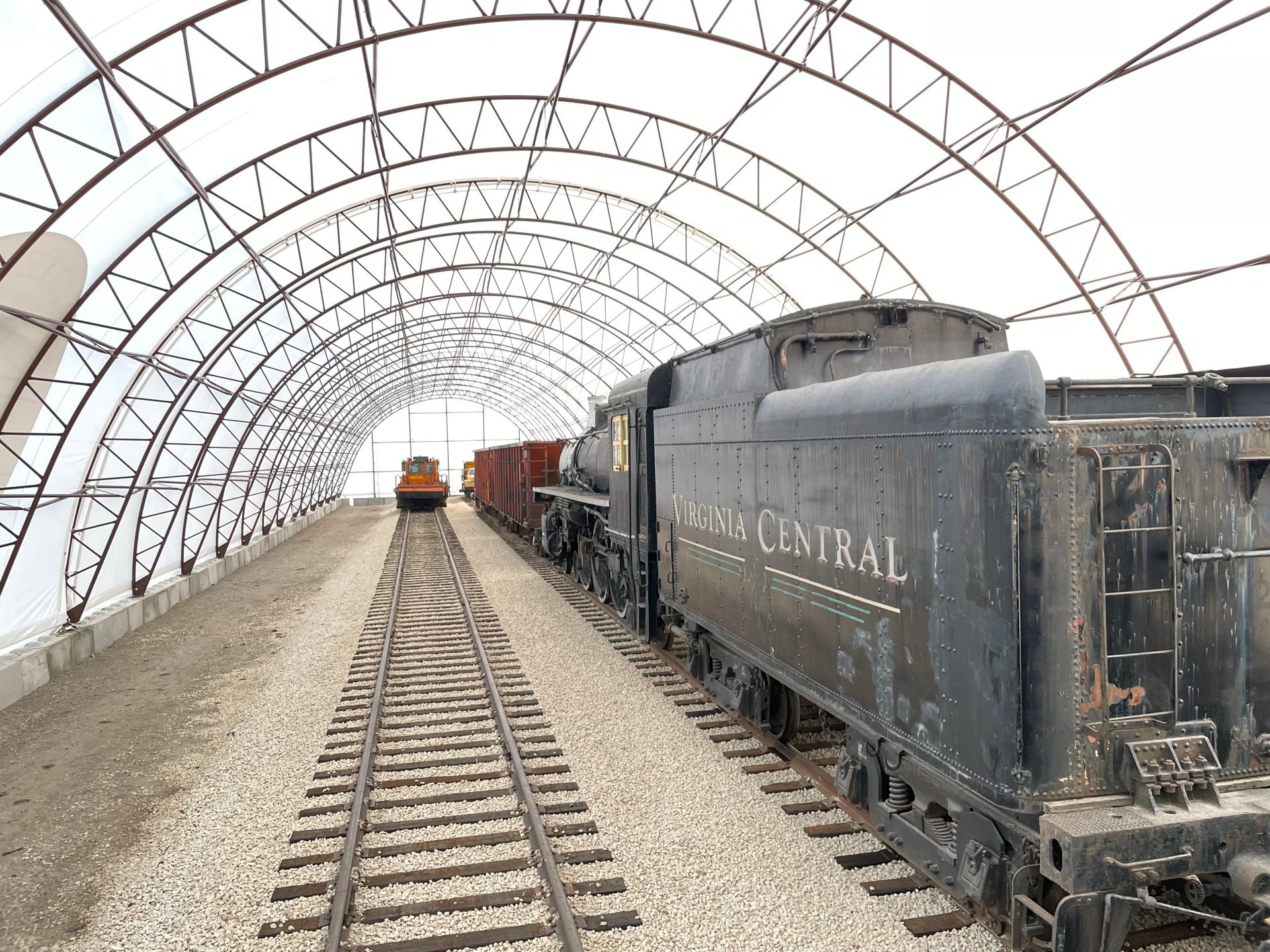

fabric building for railway train cars

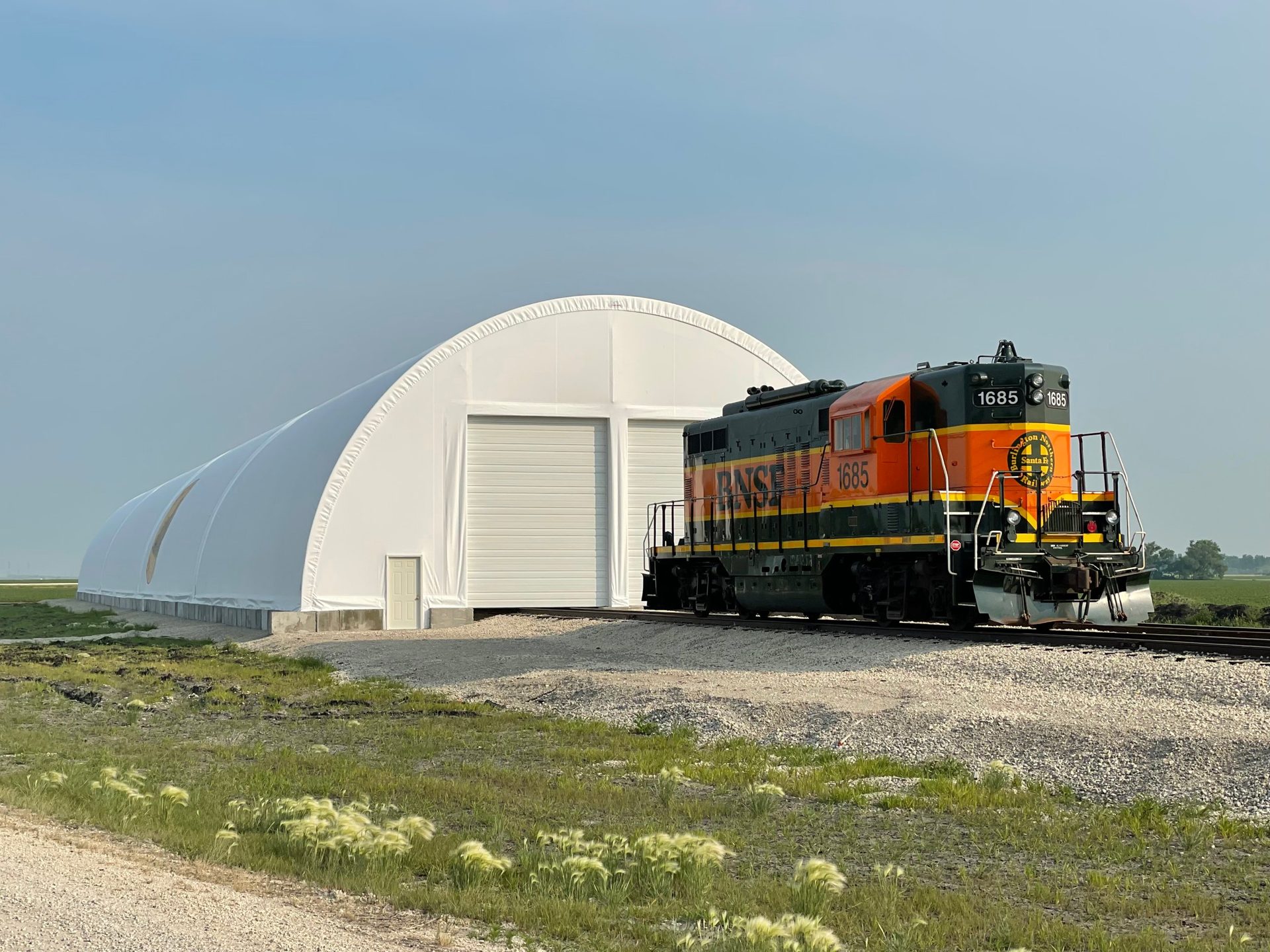

canvas building for train cars

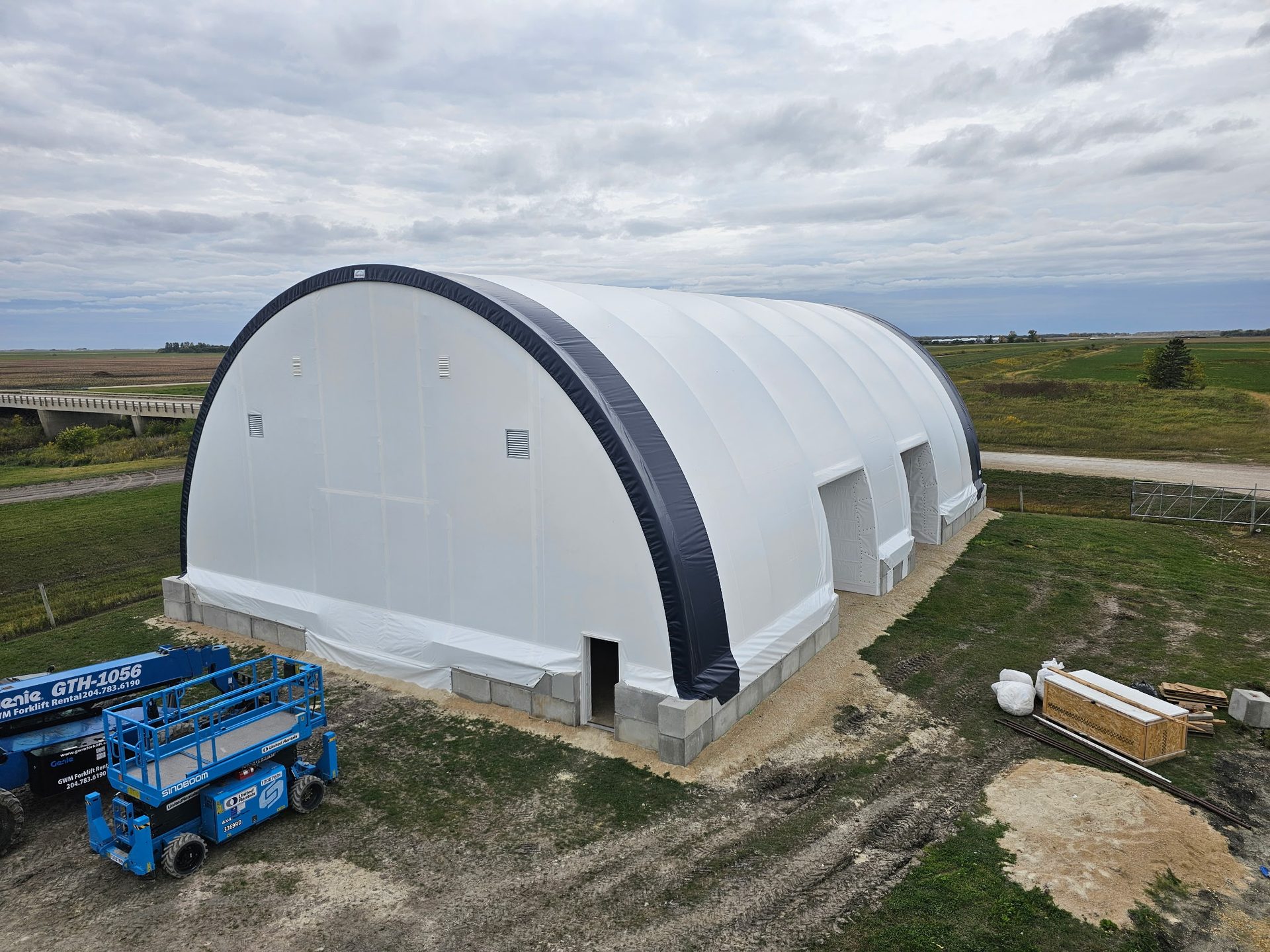

large commercial fabric building with side doors

60′ Engineered Commercial Fabric Building

Serious covered space for operations that can’t compromise on width.

Wide-load vehicles, heavy equipment maintenance bays, and bulk storage operations all share a common problem: most buildings run out of usable floor space before the work does. At 60 feet wide with no interior columns in either profile, this commercial fabric building gives operations the clear span they need to configure the interior around the work, not around the structure.

Choose Traditional Hoop or Straight Leg Style (SLSS) depending on how the building will be used. Both profiles are fully engineered, extendable in unlimited length increments, and available with a range of foundation systems to suit the site.

Category:

Description

Specification Detail
Width 60‘
Internal Peak Ceiling Height 27′
Up & Over Clearance 95′-96′
Door Openings Multiple openings per end accommodated
Length Unlimited
Foundation Flexible options: concrete, footings, pads, pony walls, rig matting, screw anchors, or shipping containers
Baserail Optional
Structure Engineered double truss, powder-coated steel
Truss Spacing Multiple options available
Warranty 15-year prorated on all steel and fabric



Profile Options

Traditional Hoop. The arch profile delivers a large, unobstructed interior that works well for bulk storage, round bale handling, and equipment that needs width more than wall clearance.

Straight Leg Style (SLSS). Vertical sidewalls run the full length of the building before the roof arch begins, which does two things: it increases usable floor area near the walls, and it opens up side entrance configurations that the hoop profile cannot accommodate. For operations planning commercial racking, shelving systems, or forklift access from the building’s side, the straight leg fabric building is the right starting point.

Key Features

Column-free across 60 feet. Equipment moves in, out, and around the interior without routing around structural supports. Whether the building is housing wide mining equipment or running multiple work bays in parallel, the floor plan works the way the operation needs it to.

Multiple door configurations per end wall. Separate vehicle and personnel access, simultaneous ingress and egress, or purpose-specific openings for different operational functions, the end wall can be configured with multiple openings to match how the site actually runs.

Site-specific engineering, not off-the-shelf loads. Snow, wind, and rain load requirements vary by location, and the 60′ is designed to the actual conditions of the site. Stamped engineering documents covering Canadian and U.S. jurisdictions are available for permitting, insurance, and corporate governance requirements.

Foundation flexibility built in. Concrete, footings, pads, pony walls, rig matting, screw anchors, shipping containers — the right foundation depends on site conditions and profile choice. FastCover works to help you choose the best foundation option for your jobsite, rather than prescribing a single approach.

Insulation and heat-ready. Either profile can be fully insulated and fitted with a heating system, making this a viable year-round facility for cold climate operations, not just a seasonal cover.

Grows with the operation. Additional bays can be added to the length over time. The building doesn’t need to be replaced when space requirements change, the building can be extended.

Common Applications

This fabric building size is common in industries where floor area and access clearance drive facility decisions:

  • Heavy equipment and wide-load vehicle storage and maintenance
  • Mining and oil field laydown and maintenance facilities
  • Large-scale agricultural equipment storage
  • Industrial warehousing and bulk material storage
  • Sand, salt, and aggregate covered storage
  • Construction and contractor staging for larger operations
  • Commercial operations requiring racking systems or side access

Why FastCover

For over three decades, FastCover has manufactured fabric structures in Winnipeg, Manitoba, engineering each building to the load requirements of the site rather than applying generic specifications. The 60′ Engineered Commercial Fabric Building is reviewed by independent third-party professional engineers and built to the same double truss standard as FastCover’s full industrial series. All steel and fabric is backed by a 15-year prorated warranty.

Ready to Spec Your Building?

Profile choice, foundation system, door layout, and length all shape the final design of a 60′ fabric building. FastCover’s team works directly with you through the full specification process, including stamped engineering documentation where permitting requires it.
